Six grid temperature measurement paper, also known as TMC temperature measurement paper, thermal test paper, temperature sensing sticker, UK THERMAX, etc., is vertically automatic pasting type, and has two types of data display: Celsius and Fahrenheit. There are four temperature measurement ranges. It has the advantages of convenient use, compact size, high measurement accuracy, and wide application range. It is a good temperature measurement product in fields such as shipbuilding, welding, offshore oil platforms, pressure vessels, oil and gas pipelines, nuclear energy, electromechanical, power, textiles, coil coatings, color steel plates, etc.

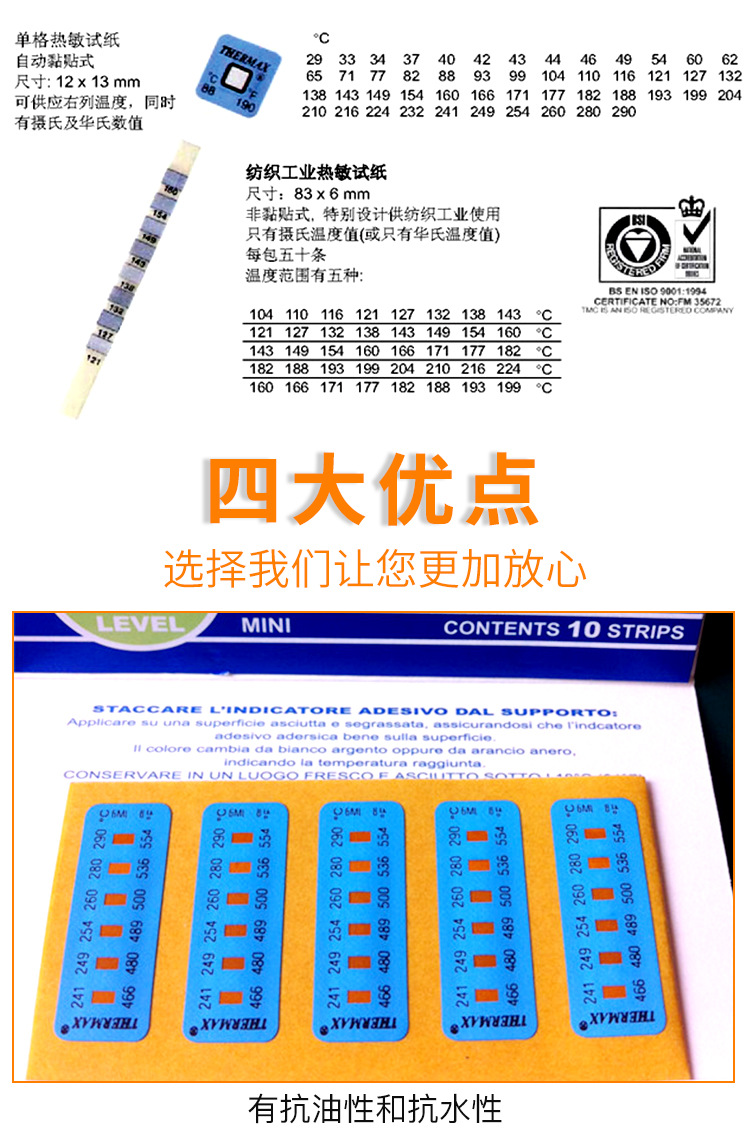

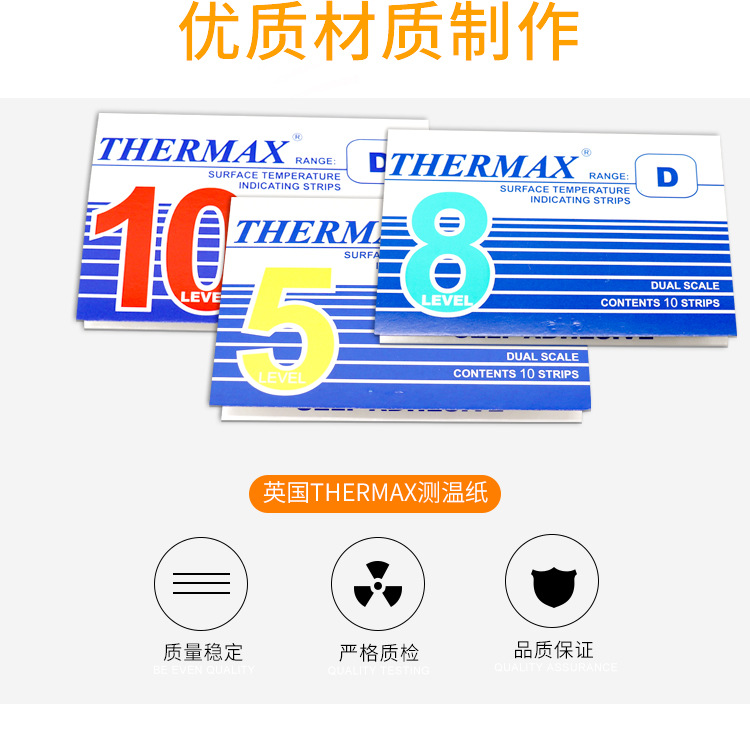

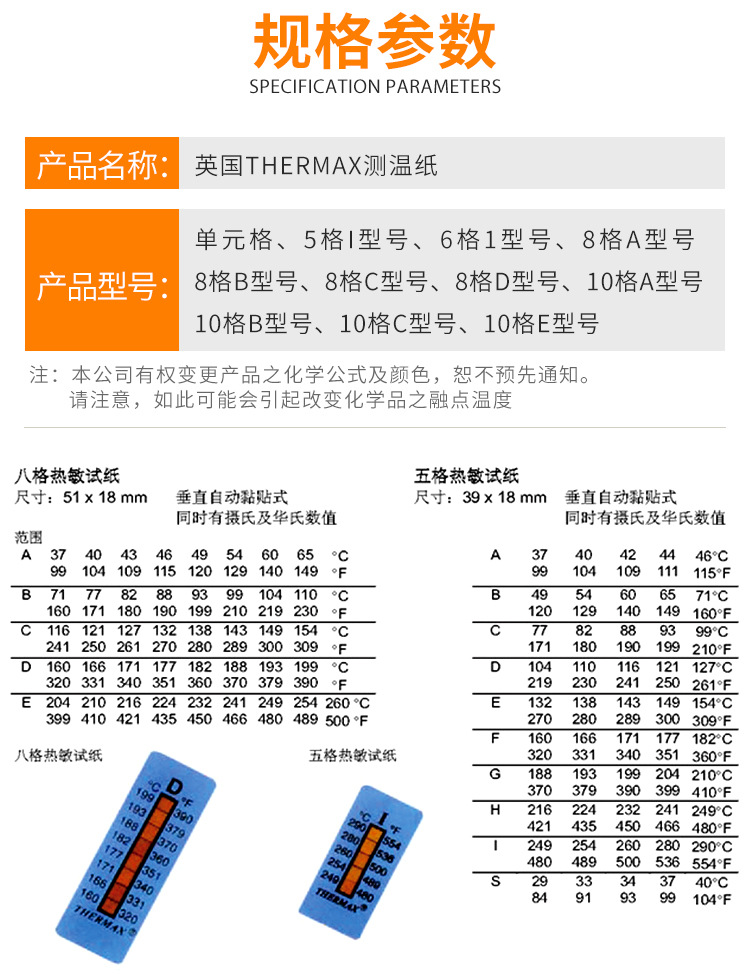

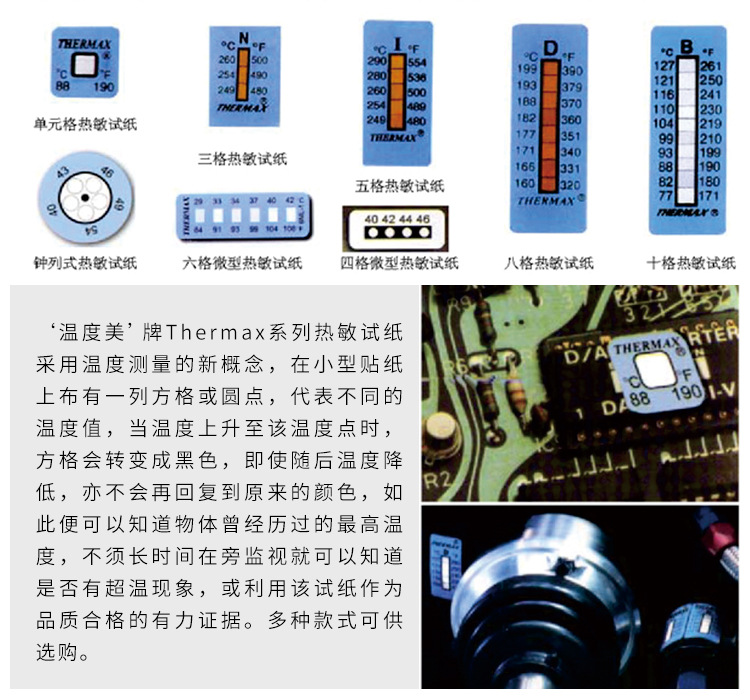

The Thermax series temperature measuring paper from the UK's Emad brand adopts a new concept of temperature measurement. There is a row of squares or dots on the small sticker, representing different temperature values. When the temperature rises to this temperature point, the squares will turn black, and when the temperature drops, they will not return to their original color. This allows us to know the specific temperature that the object has experienced and whether there is any overheating phenomenon. It is not necessary to monitor the object for a long time to determine whether there is overheating. This test strip can be used as strong evidence of qualified quality, with multiple temperature ranges such as level 8, level 10, and level 5 available for purchase.

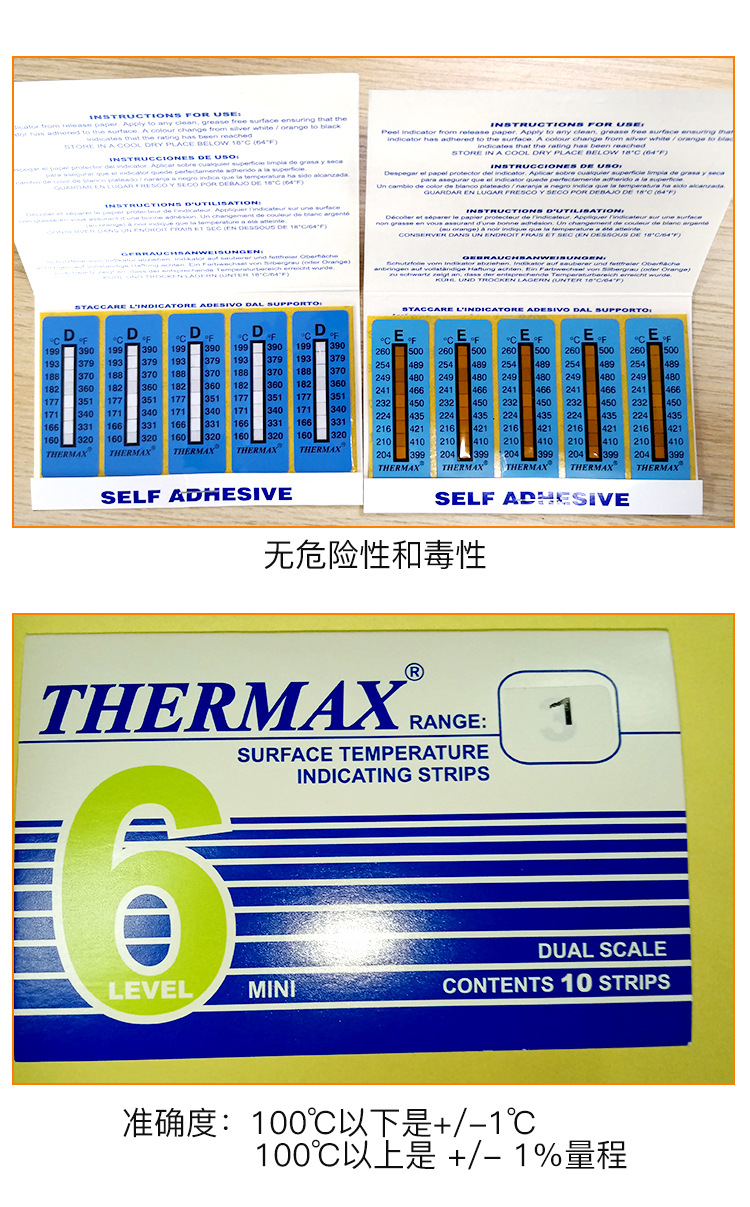

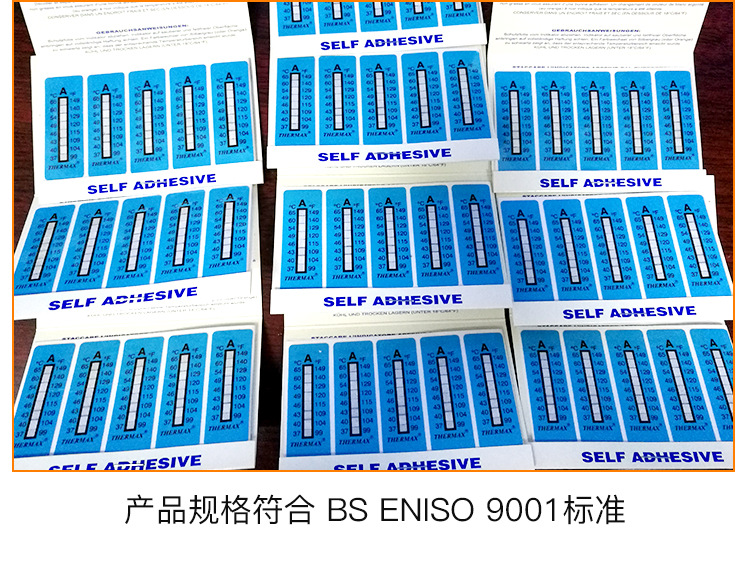

TMC temperature measuring paper complies with BS EN ISO 9001 standard and can measure temperature and body temperature, as well as be used to check temperature changes during machine operation. It is possible to determine the specific temperature that an object has experienced, in order to determine whether there is any overheating phenomenon. It has oil and water resistance, and is non hazardous and non-toxic.
Size: 12x32mm, 10 pieces per book Accuracy: ± 1 ℃
1、 Six grid thermal test paper testing range

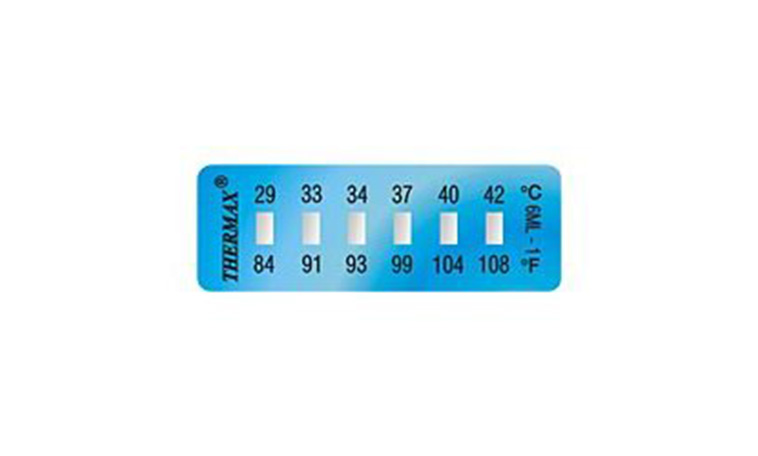

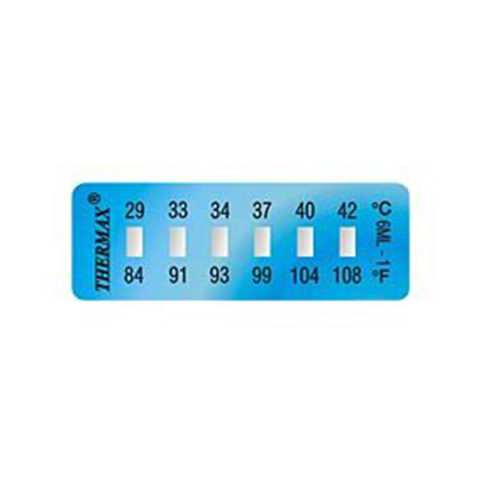

6-1：29，33，34，37，40，42℃

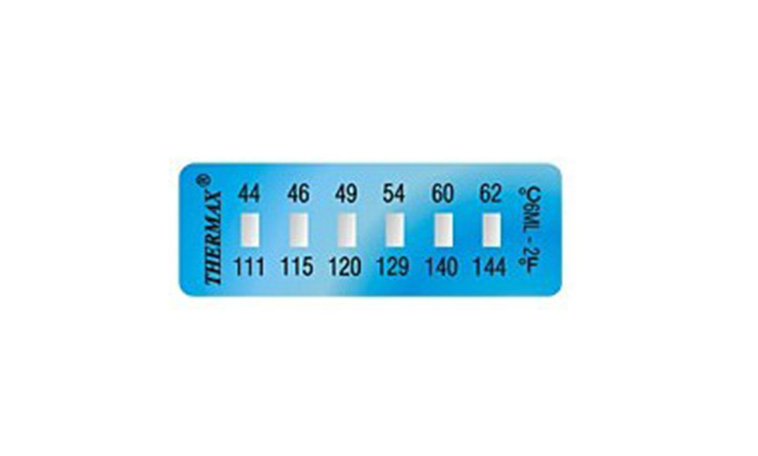

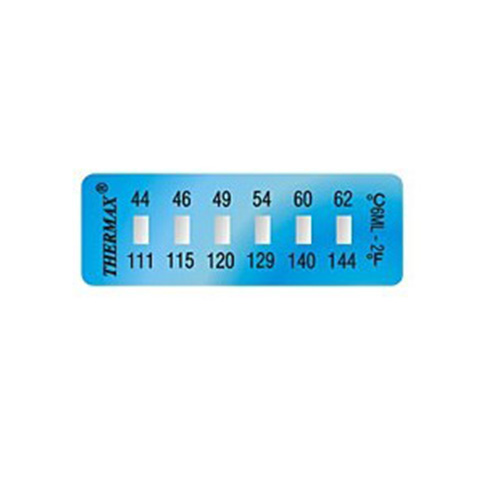

6-2：44，46，49，54，60，62℃

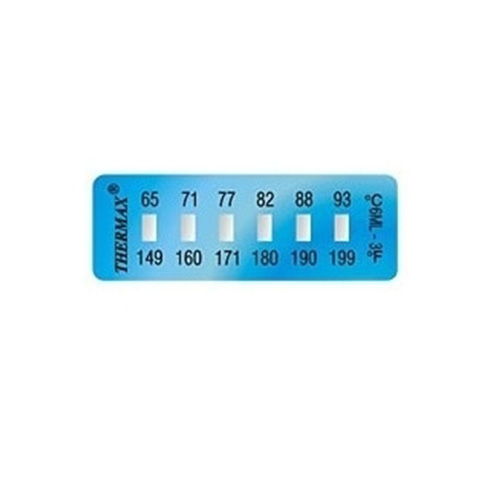

6-3：65，71，77，82，88，93℃

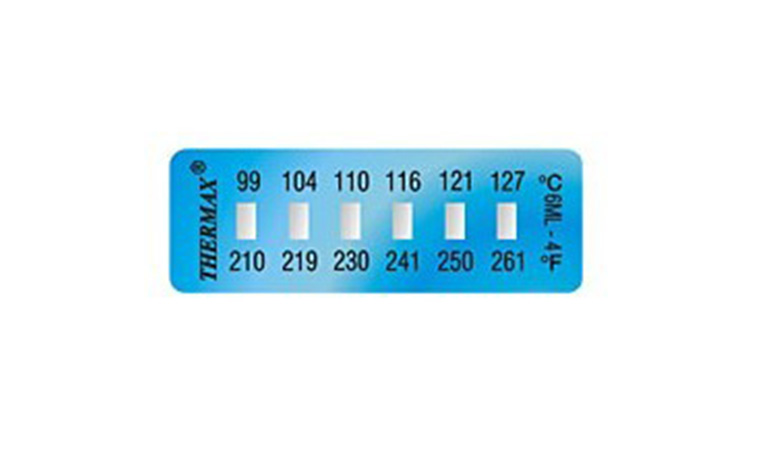

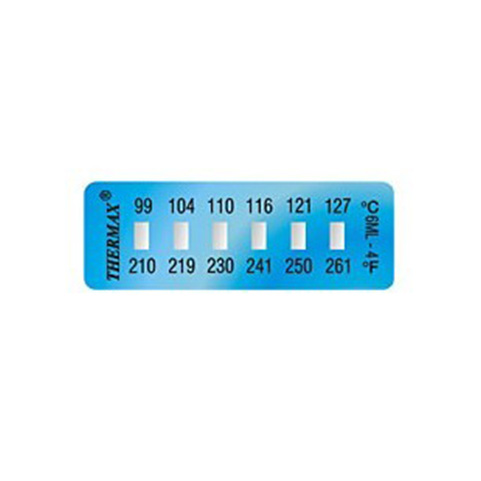

6-4：99，104，110，116，121，127℃

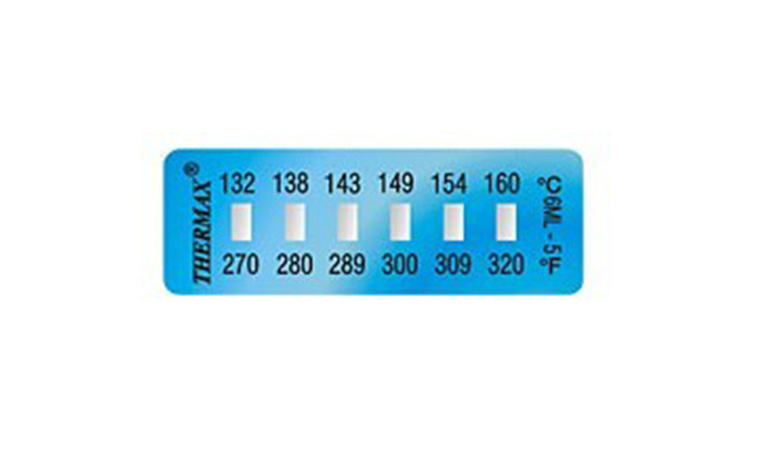

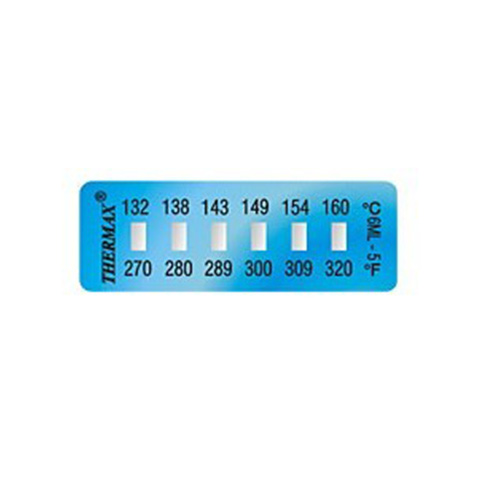

6-5：132，138，143，149，154，160℃

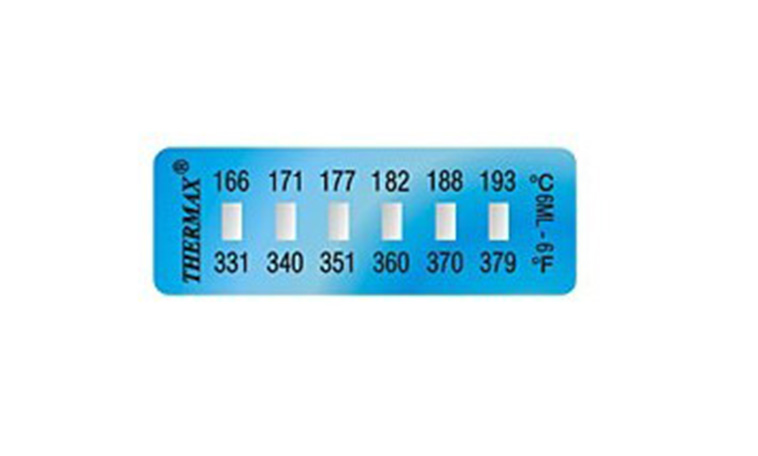

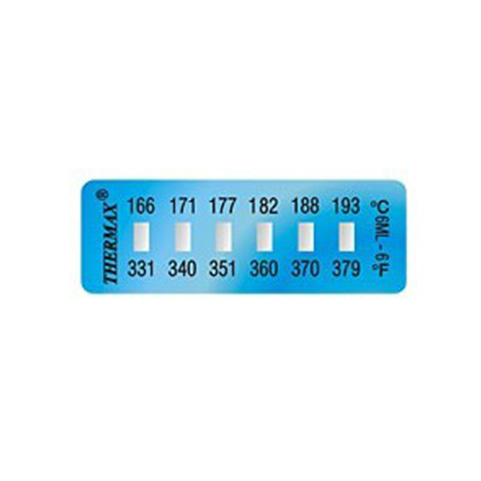

6-6：166，171，177，182，188，193℃

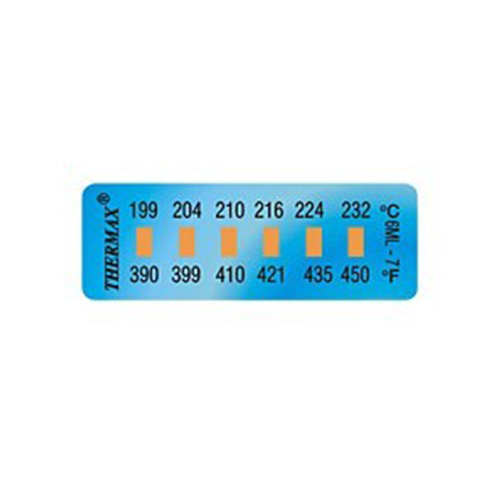

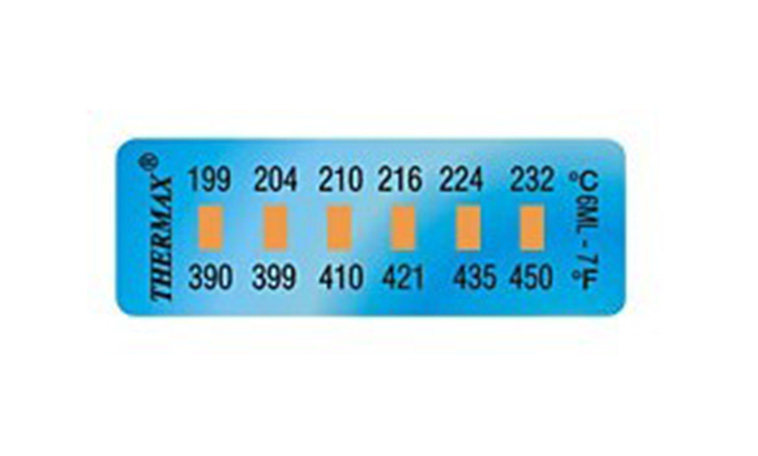

6-7：199，204，210，216，224，232℃

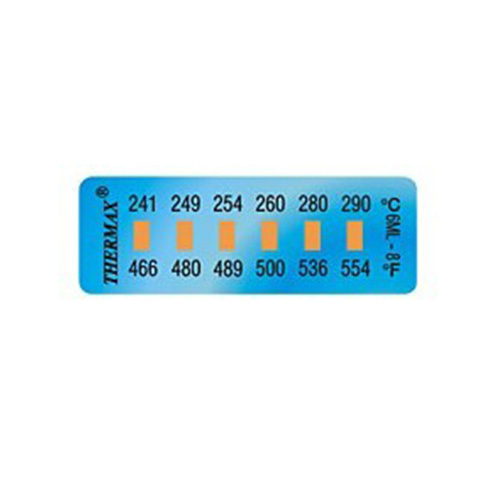

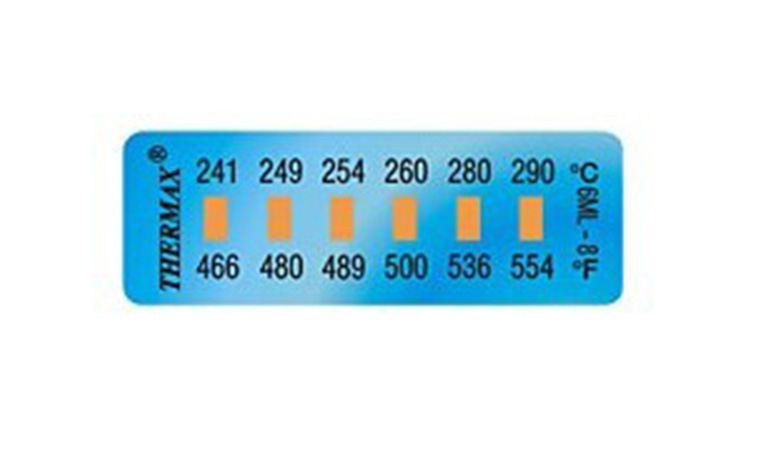

6-8：241，249，254，260，280，290℃
